Product

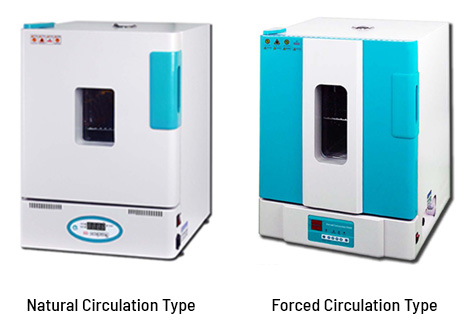

Dry Oven

- Various use for drying and sterilizing of samples,
testing tools etc. at the high temperature - Practical and small size for maximizing space to use
- Convenient temperature & time setting of temp. and time
with the digital PID button type controller - Internal Window for preventing external contamination
and easy sample observation - Position-adjustable internal shelf
- Auto-tuning (self calibration)
- Forced circulation type to be suitable in order to maintain
the balance of internal temp. by using fan
MODEL | BF-32DO | BF-72DO | BF-150DO | BF-72DOF | BF-150DOF | |
---|---|---|---|---|---|---|
Natural Circulation Type | Forced Circulation Type | |||||
Dimension | Internal Size (WxDxH) | 300 x 300 x 350 | 400 x 400 x 450 | 500 x 500 x 600 | 400 x 400 x 450 | 550 x 460 x 600 |
Outer(WxDxH)(mm) | 430 x 430 x 630 | 530 x 530 x 740 | 630 x 630 x 900 | 530 x 650 x 740 | 680 x 710 x 890 | |
Volume | 32L | 72L | 150L | 72L | 150L | |
Electrical spec | Heater | 600W | 1,000W | 1,500W | 1,400W | 2,000W |
Power | 220V, 3A, 1Ø | 220V, 5A, 1Ø | 220V, 7A, 1Ø | 220V, 7A, 1Ø | 220V, 10A, 1Ø | |
Internal Shelves | 2ea | 3ea | 3ea | 3ea | 3ea | |
Weight | 26kg | 38kg | 52kg | 57kg | 87kg | |
Materials | Inner | Stainless steel(SUS #304) | ||||
Outer | Steel plate with powder coating | |||||
Temp. | Range | Ambient +5℃ to 180℃ | Ambient +5℃ to 250℃ | |||
Accuracy | ±1℃ | ±1℃ | ||||
Timer Range | 99Hr 59Min, 99Min 59Sec, 99Day 23Hr | |||||
Safety Device | Over Temperature Protector | |||||
Controller | Digital Temp. Controller & Digital Display / K type(CA) |

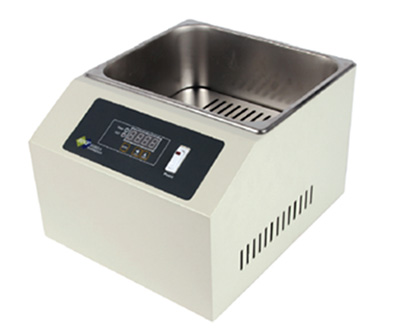

Water Bath

- Natural convection type’s water tank
- Prevention of being rusty by adopting internal SUS304 material
- Temperature balance being constant by temperature
control system - Digital LCD display
- Diverse rack types and sizes available for its use by order
MODEL | BF-WBD1(8.6L) | |
---|---|---|
Dimension | Internal Size (WxDxH) | 300*240*120 |
Outer(WxDxH)(mm) | 325*265*220 | |
Capacity | 8.6L | |
Electrical spec. | Heater | 0~99℃ |
Power | AC 220 V 1¢ | |
Weight | 6.4kg | |
Material | Inner | Stainless steel(SUS #304) |
Outer | Steel plate with powder coating | |
Temp. | Range | Ambient to 95℃ |
Accuracy | ±0.5℃ | |
Timer Range | 99Hr 59Min, 99Min 59Sec, 99Day 23Hr | |
Safety Device | Over Temperature Protector | |
Controller | Digital Temp. Controller & Digital Display / PT 100Ω |
